-Highly Customizable
Wire harnesses can be tailored to specific customer requirements, including connector types, cable lengths, wire gauges, and electrical configurations—ideal for diverse industries and applications.
-Stable and Wide Market Demand
Wire harnesses are essential in automotive, robotics, industrial automation, medical devices, and consumer electronics, ensuring consistent and long-term demand.
-High Value-Added Products
Compared to standard wires or cables, wire harnesses integrate multiple components such as connectors, terminals, and protective sleeves—offering higher margins and added value.
-Preferred by OEMs and Integrators
Pre-assembled wire harnesses simplify installation and save labor costs for end customers, making them attractive to OEM manufacturers and system integrators.
| Category | Specification |
|---|---|
| Manufacturer Part No | 239547 (35 m) |
| Cable Type | Basic cable |
| Drive Technology System | B&R, B&R |
| Number of Cores and Conductor | (5x(2×0.14)+2×0.5)C |
| Outer Diameter (max) [mm] | 8 |
| Weight per km [kg/km] | 75 |
| Copper Index [kg/km] | 45 |
| Min. Bend Radius, e-chain (factor) [x d] | 10 |
| Min. Bend Radius, e-chain [mm] | 80 |
| Min. Bend Radius, flexible (factor) [x d] | 8 |
| Min. Bend Radius, fixed (factor) [x d] | 5 |
| Temperature e-chain® | +5°C up to +70°C |
| Temperature, flexible | -5°C to +70°C (according to DIN EN 60811-504) |
| Temperature, fixed | -15°C to +70°C (according to DIN EN 50305) |
| Max speed unsupported [m/s] | 5 |
| Max speed gliding [m/s] | 3 |
| Max acceleration [m/s²] | 30 |
| Nominal Voltage | 50V |
| UL Voltage Rating [V] | 300 |
| Test Voltage | 500V |
| Conductor | Very finely stranded special conductors of particularly bending resistant design made of tinned copper wires |
| Core Insulation | Mechanically high-quality TPE mixture |
| Core Stranding | According to measuring system specification |
| Core Group 1 Structure | 5x(2×0.14) |
| Core Group 1 Colour Code | brown/green, yellow/grey, white/violet, red/black, pink/blue |
| Core Group 2 Structure | 2×0.5 |
| Element Shield | Extremely bend-resistant, tinned copper shielding. Cover approx. 90% optical |
| Element Jacket | TPE mixture on pair shielding adapted to suit the requirements in e-chains® |
| Overall Shield | Extremely bend-resistant braiding made of tinned copper wires. Coverage approx. 55% linear, approx. 80% optical |
| Outer Jacket | Low-adhesion, oil-resistant PVC mixture, adapted to suit the requirements in e-chains® (DIN EN 50363-4-1) |
| Outer Jacket Colour | Yellow-green (comparable to RAL 6018) |
| UV Resistance | None |
| Oil Resistance | Oil-resistant (according to DIN EN 50363-4-1), Class 2 |
| Flame Retardant | According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame |
| Silicone-free | Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992) |
| UL Verified | Certificate no. V293650: “igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year” |
| NFPA | According to NFPA 79-2018, chapter 12.9 |
| REACH | In accordance with Regulation (EC) No. 1907/2006 (REACH) |
| Lead-free | According to 2011/65/EU (RoHs-II/RoHS-III) |
| Cleanroom | According to ISO Class 2. Outer jacket material complies with CF5.10.07 – tested by IPA (DIN EN ISO 14644-1) |
| CE | According to 2014/35/EU |

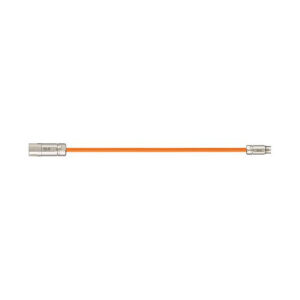

| Connector A | round plug, socket |
| Connector B | SUB-D, pin |
