-Highly Customizable
Wire harnesses can be tailored to specific customer requirements, including connector types, cable lengths, wire gauges, and electrical configurations—ideal for diverse industries and applications.
-Stable and Wide Market Demand
Wire harnesses are essential in automotive, robotics, industrial automation, medical devices, and consumer electronics, ensuring consistent and long-term demand.
-High Value-Added Products
Compared to standard wires or cables, wire harnesses integrate multiple components such as connectors, terminals, and protective sleeves—offering higher margins and added value.
-Preferred by OEMs and Integrators
Pre-assembled wire harnesses simplify installation and save labor costs for end customers, making them attractive to OEM manufacturers and system integrators.

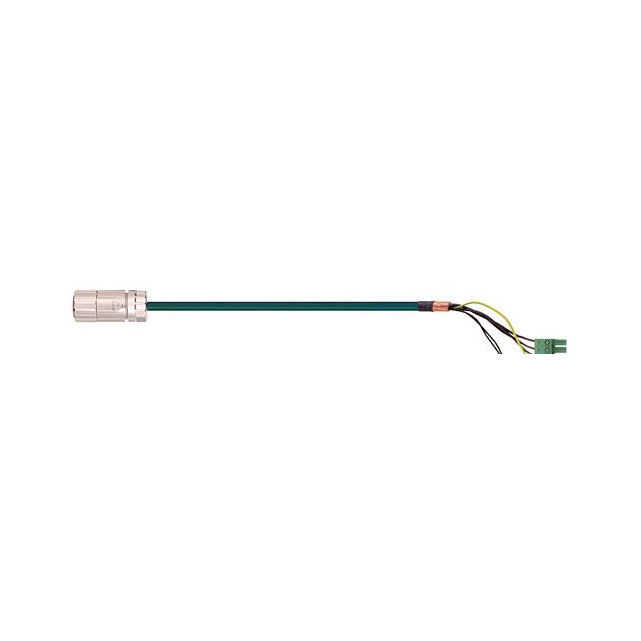

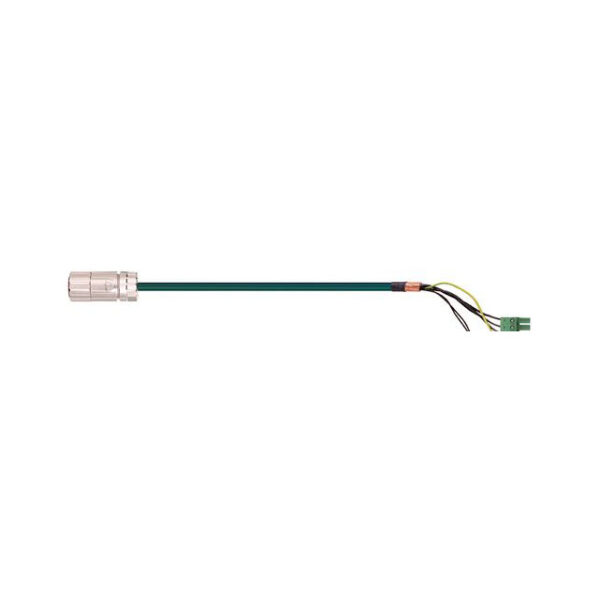

For extremely heavy duty applications
| Category | Specification |
|---|---|
| Manufacturer Properties | |
| Manufacturer Part No | RKL4326 |
| Cable type | Basic cable |
| General Properties | |
| Number of cores and conductor size | (4G2.5+2x(2×1.5)C)C |
| Outer diameter max. [mm] | 16 |
| Weight per km [kg/km] | 383 |
| Copper index [kg/km] | 254 |
| Dynamic Information | |
| Min. bend radius, e-chain (factor) [x d] | 7.5 |
| Min. bend radius, e-chain [mm] | 120 |
| Min. bend radius, flexible (factor) [x d] | 6 |
| Min. bend radius, fixed (factor) [x d] | 4 |
| Temperature range, e-chain® | -25°C to +80°C |
| Temperature, flexible | -40°C to +80°C (DIN EN 60811-504) |
| Temperature, fixed | -50°C to +80°C (DIN EN 50305) |
| Max. speed unsupported [m/s] | 10 |
| Max. speed gliding [m/s] | 5 |
| Max. acceleration [m/s²] | 80 |
| Electrical Properties | |
| Nominal voltage | 600/1,000V (DIN VDE 0298-3) |
| UL Voltage Rating [V] | 1000 |
| Test voltage | 4000V (DIN EN 50395) |
