For extremely heavy duty applications
| Category | Specification |
|---|---|
| Manufacturer Part No | IKG4161 |

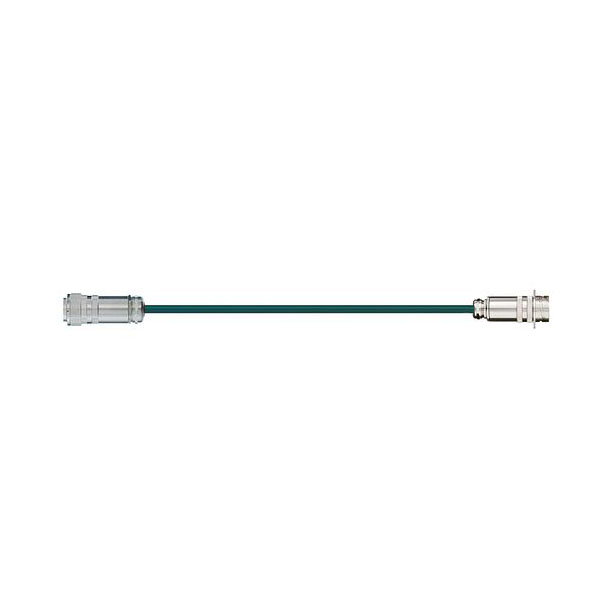

| Cable Type | Connection cable with adapter plug |
| Number of cores and conductor nominal cross-section | (4G10 + 2x(2×1.5)C)C |
| Outer diameter (max) [mm] | 22.5 |
| Weight per km [kg/km] | 842 |
| Copper index [kg/km] | 592 |
| Min. bend radius, e-chain (factor) [x d] | 7.5 |
| Min. bend radius, e-chain [mm] | 168.75 |
| Min. bend radius, flexible (factor) [x d] | 6 |
| Min. bend radius, fixed (factor) [x d] | 4 |
| Temperature e-chain® | -25°C up to +80°C |
| Temperature, flexible | -40°C to +80°C (according to DIN EN 60811-504) |
| Temperature, fixed | -50°C to +80°C (according to DIN EN 50305) |
| Max. unsupported speed (v max.) [m/s] | 10 |
| Max. gliding speed (v max.) [m/s] | 5 |
| Max. acceleration (a max.) [m/s²] | 80 |
| Nominal voltage | 600/1,000V (according to DIN VDE 0298-3) |
| UL Voltage Rating [V] | 1000 |
| Test voltage | 4000V (according to DIN EN 50395) |
| Core conductor | Stranded conductor in an especially bend-resistant version consisting of bare copper wires (DIN EN 60228) |
| Core insulation | Mechanically high-quality, especially low-capacity XLPE mixture |
| Core stranding | Power cores with control pair elements wound with elements for high-tensile stresses |
| Core group 1 structure | 4G10 |
| Core group 2 structure | 2x(2×1.5)C)C |
| Element shield | Extremely bend-resistant braiding made of tinned copper wires |
| Inner jacket | TPE mixture adapted to suit the requirements in e-chains® |
| Overall shield | Extremely flexible braiding made of tinned copper wires. Coverage linear approx. 70%, optical approx. 90% |
| Outer jacket | Low-adhesion, halogen-free, highly abrasion-resistant PUR mixture, adapted to suit e-chains® (DIN EN 50363-10-2) |
| Outer jacket colour | Pastel orange (comparable to RAL 2003) |
| CFRIP® | Strip cables faster: a tear strip is moulded into the inner jacket |
| UV resistance | Medium |
| Oil resistance | Oil-resistant (according to DIN EN 50363-10-2), Class 3 |
| Offshore | MUD-resistant according to NEK 606 – status 2018 |
| Flame retardant | According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame |
| Silicone-free | Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992) |
| Halogen-free | According to DIN EN 60754 |
| UL verified | Certificate no. V293650: “igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year” |
| NFPA | According to NFPA 79-2018, chapter 12.9 |
| DNV | Type approval certificate TAE00003XA |
| REACH | In accordance with Regulation (EC) No. 1907/2006 (REACH) |
| Lead-free | According to 2011/65/EU (RoHS-II/RoHS-III) |
| Cleanroom | According to ISO Class 1. Outer jacket material complies with CF77.UL.05.12.D – tested by IPA (DIN EN ISO 14644-1) |
| DESINA | According to VDW, DESINA standardisation |
| CE | According to 2014/35/EU |
| Connector A | Round connector socket |
| Connector B | Round connector plug |
