-Highly Customizable
Wire harnesses can be tailored to specific customer requirements, including connector types, cable lengths, wire gauges, and electrical configurations—ideal for diverse industries and applications.
-Stable and Wide Market Demand
Wire harnesses are essential in automotive, robotics, industrial automation, medical devices, and consumer electronics, ensuring consistent and long-term demand.
-High Value-Added Products
Compared to standard wires or cables, wire harnesses integrate multiple components such as connectors, terminals, and protective sleeves—offering higher margins and added value.
-Preferred by OEMs and Integrators
Pre-assembled wire harnesses simplify installation and save labor costs for end customers, making them attractive to OEM manufacturers and system integrators.

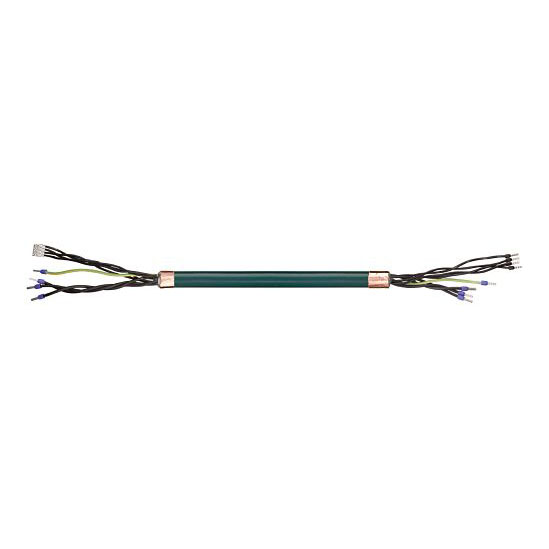

For extremely heavy duty applications
| Category | Specification |
|---|---|
| Manufacturer Part No | IKG4020 |
| Cable Type | Basic cable |
| Number of cores & conductor nominal cross-section | (4G1.0 + 2×(2×0.75)C)C |
| Outer diameter (max) [mm] | 13.5 |
| Weight per km [kg] | 245 |
| Copper index [kg/km] | 148 |
| Min. bend radius, e-chain (factor × d) | 7.5 |
| Min. bend radius, e-chain [mm] | 101.25 |
| Min. bend radius, flexible (factor × d) | 6 |
| Min. bend radius, fixed (factor × d) | 4 |
| Temperature e-chain® | -25°C to +80°C |
| Temperature, flexible | -40°C to +80°C (according to DIN EN 60811-504) |
| Temperature, fixed | -50°C to +80°C (according to DIN EN 50305) |
| Max speed unsupported [m/s] | 10 |
