-Highly Customizable
Wire harnesses can be tailored to specific customer requirements, including connector types, cable lengths, wire gauges, and electrical configurations—ideal for diverse industries and applications.
-Stable and Wide Market Demand
Wire harnesses are essential in automotive, robotics, industrial automation, medical devices, and consumer electronics, ensuring consistent and long-term demand.
-High Value-Added Products
Compared to standard wires or cables, wire harnesses integrate multiple components such as connectors, terminals, and protective sleeves—offering higher margins and added value.
-Preferred by OEMs and Integrators
Pre-assembled wire harnesses simplify installation and save labor costs for end customers, making them attractive to OEM manufacturers and system integrators.
| Category | Property |
|---|---|
| Manufacturer Properties | |

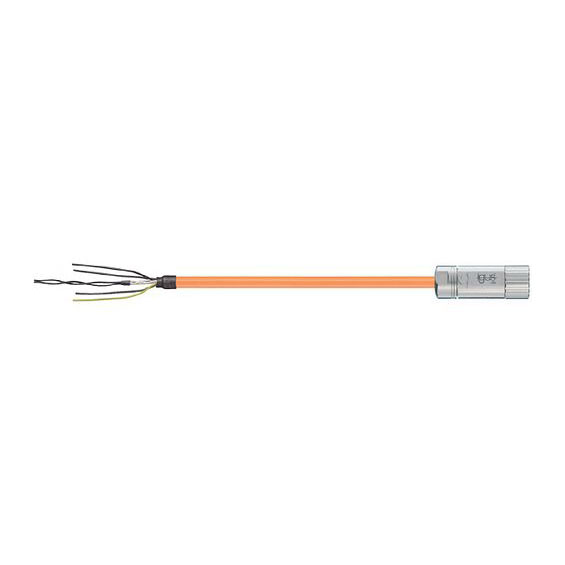

| Manufacturer Part No | 2090-CPWM7DF-10AFxx |
| Cable Type | Basic cable |
| General Properties | |
| No. of Cores & Conductor Size | (4G6.0)C |
| Max. Outer Diameter [mm] | 14.5 |
| Weight per km [kg/km] | 377 |
| Copper Index [kg/km] | 269 |
| Dynamic Information | |
| Min. Bend Radius, e-chain (factor) [× d] | 15 |
| Min. Bend Radius, e-chain [mm] | 217.5 |
| Min. Bend Radius, flexible (factor) [× d] | 12 |
| Min. Bend Radius, fixed (factor) [× d] | 8 |
| Temperature Range, e-chain | +5°C to +70°C |
| Temperature Range, flexible | -5°C to +70°C (DIN EN 60811-504) |
| Temperature Range, fixed | -15°C to +70°C (DIN EN 50305) |
| Max. Speed Unsupported [m/s] | 3 |
| Max. Speed Gliding [m/s] | 0 |
| Max. Acceleration [m/s²] | 20 |
| Electrical Properties | |
| Nominal Voltage | 600/1,000V (DIN VDE 0298-3) |
| UL Voltage Rating [V] | 1000 |
| Test Voltage | 4000V (DIN EN 50395) |
| Core Details | |
| Conductor | Bare copper wires (DIN EN 60228) |
| Core Insulation | High-quality, low-capacitance TPE mixture |
| Core Stranding | Optimised pitch length |
| Core Structure | (4G6.0)C |
| Shielding & Jacket | |
| Overall Shield | Braiding of tinned copper wires, ~60% optical coverage |
| Outer Jacket Material | Low-adhesion PVC mixture (suitable for e-chains®) |
| Outer Jacket Colour | Pastel orange (similar to RAL 2003) |
| Characteristics | |
| UV Resistance | None |
| Oil Resistance | Not oil resistant |
| Flame Retardant | IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame |
| Silicone-Free | Yes (per PV 3.10.7 – 1992) |
| UL Verified | Certificate no. V293650: igus 4-year chainflex cable guarantee |
| NFPA Compliance | NFPA 79-2018, chapter 12.9 |
| REACH Compliance | Yes (Regulation (EC) No. 1907/2006) |
| Lead-Free | Yes (2011/65/EU RoHS-II / RoHS-III) |
| CE Compliance | Yes (2014/35/EU) |
| Plug | |
| Connector A | Round plug, socket |
| Connector B | Open cable end |
