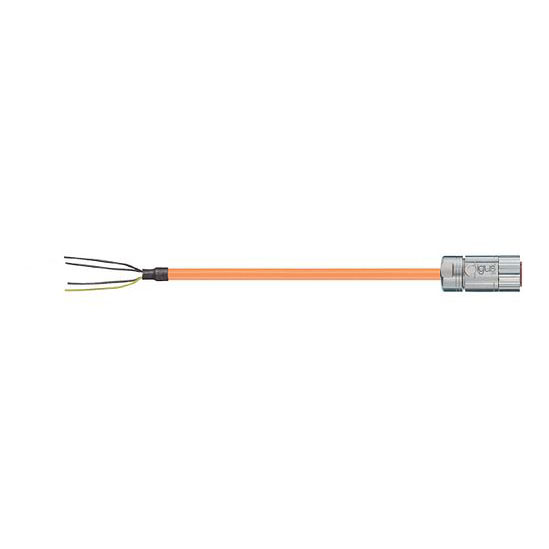

readycable® motor cable suitable for Allen Bradley 2090-CPWM4DF-12AFxx, basic cable PVC 15xd

  • For flexing applications
  • PVC outer jacket
  • Overall shield
  • Flame retardant
  • Silicone-free
  • Not oil-resistant
Category Specification
Manufacturer Properties
Manufacturer Part No 2090-CPWM4DF-12AFxx
Cable Type Basic cable
General Properties
Number of cores & conductor nominal cross-section (4G4.0)C
Outer diameter (d) max. [mm] 12
Weight per km [kg/km] 263
Copper index kg/km [kg/km] 204
Dynamic Information
Min. bend radius, e-chain (factor) [× d] 15
Min. bend radius, e-chain [mm] 180
Min. bend radius, flexible (factor) [× d] 12
Min. bend radius, fixed (factor) [× d] 8
Temperature e-chain® +5°C up to +70°C
Temperature, flexible -5°C to +70°C (according to DIN EN 60811-504)
Temperature, fixed -15°C to +70°C (according to DIN EN 50305)
Max. unsupported speed (v max.) [m/s] 3
Max. gliding speed (v max.) [m/s] 0
Max. acceleration (a max.) [m/s²] 20
Electrical Properties
Nominal voltage 600/1,000V (according to DIN VDE 0298-3)
UL Voltage Rating [V] 1000
Test voltage 4000V (according to DIN EN 50395)
Core
Conductor Bare copper wires (according to DIN EN 60228)
Core insulation Mechanically high-quality, especially low-capacitance TPE mixture
Core stranding Cores wound with an optimised pitch length
Core group 1 core structure (4G4.0)C
Overall Shield Braiding made of tinned copper wires, approx. 60% optical coverage
Outer Jacket Low-adhesion PVC mixture, adapted to suit the requirements in e-chains®
Outer jacket colour Pastel orange (comparable to RAL 2003)
Characteristics Classification
UV resistance None
Oil resistance No oil resistance
Flame retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame
Silicone-free Free from silicone affecting paint adhesion (PV 3.10.7 – status 1992)
UL verified Certificate No. V293650: “igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year”
NFPA According to NFPA 79-2018, chapter 12.9
REACH In accordance with Regulation (EC) No. 1907/2006 (REACH)
Lead-free According to 2011/65/EU (RoHS-II / RoHS-III)
CE According to 2014/35/EU
Plug
Connector A Round plug, socket
Connector B Open cable end
