Profinet
• Star quad structure
• For energy chain applications
• PVC outer jacket
• Outer jacket colour yellow-green
• Bend factor 12.5xd
• Overall shield
• Oil-resistant & flame-retardant
• 10 million double strokes guaranteed
| Category | Specification |
|---|---|
| Cable type | Basic cable |
| Bus system | Profinet |
| Number of cores & conductor nominal cross-section | (4×0.38)C |
| Outer diameter (max) [mm] | 7 |
| Weight per km [kg/km] | 67 |
| Copper index [kg/km] | 33 |
| Min. bend radius, e-chain (factor) [× d] | 12.5 |
| Min. bend radius, e-chain [mm] | 87.5 |
| Min. bend radius, flexible (factor) [× d] | 10 |
| Min. bend radius, fixed (factor) [× d] | 7 |
| Temperature range e-chain® | +5°C up to +70°C |
| Temperature range flexible | -5°C to +70°C (DIN EN 60811-504) |
| Temperature range fixed | -15°C to +70°C (DIN EN 50305) |
| Max speed unsupported [m/s] | 3 |
| Max speed gliding [m/s] | 2 |
| Max acceleration [m/s²] | 30 |
| Nominal voltage | 50V |
| UL Voltage rating [V] | 300 |
| Test voltage | 500V |
| Wave resistance approx. [Ω] | 100 |
| Core conductor | Stranded, especially bend-resistant bare copper wires (DIN EN 60228) |
| Core insulation | According to bus specification |
| Core group 1 structure | 4×0.38 |
| Core group 1 colour code | White, orange, blue, yellow (star-quad stranding) |
| Overall shield | Bend-resistant braiding of tinned copper wires; approx. 55% linear, 80% optical coverage |
| Outer jacket | Low-adhesion PVC mixture for e-chains® (DIN EN 50363-4-1) |
| Outer jacket colour | Yellow-green (similar to RAL 6018) |
| UV resistance | Medium |
| Oil resistance | Oil-resistant (DIN EN 50363-4-1), Class 2 |
| Flame retardant | IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame |
| Silicone-free | Free from silicone affecting paint adhesion (PV 3.10.7 – 1992) |
| UL verified | Certificate no. V293650: “igus 4-year chainflex cable guarantee and life calculator” |
| UL-Listed | CMX UL 444, 75°C |
| NFPA | According to NFPA 79-2018, chapter 12.9 |
| REACH | Compliant with Regulation (EC) No. 1907/2006 (REACH) |
| Lead-free | According to 2011/65/EU (RoHS-II/RoHS-III) |
| Cleanroom | ISO Class 1; outer jacket complies with CF240.02.24, tested by IPA (DIN EN ISO 14644-1) |
| CE | According to 2014/35/EU |

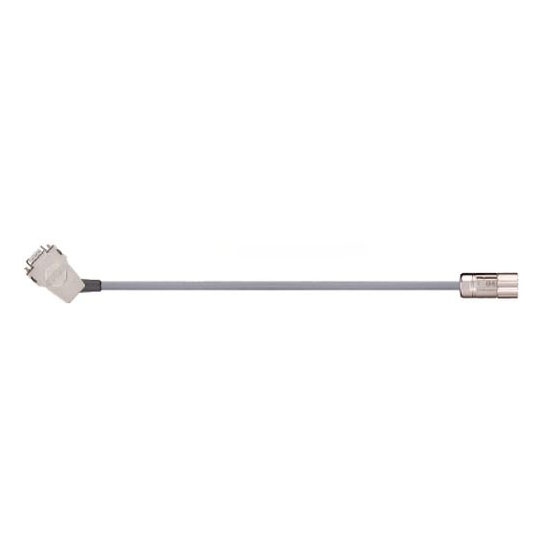

| Plug Connector A | SUB-D, pin |
| Plug Connector B | Round plug, socket |
