-Highly Customizable
Wire harnesses can be tailored to specific customer requirements, including connector types, cable lengths, wire gauges, and electrical configurations—ideal for diverse industries and applications.
-Stable and Wide Market Demand
Wire harnesses are essential in automotive, robotics, industrial automation, medical devices, and consumer electronics, ensuring consistent and long-term demand.
-High Value-Added Products
Compared to standard wires or cables, wire harnesses integrate multiple components such as connectors, terminals, and protective sleeves—offering higher margins and added value.
-Preferred by OEMs and Integrators
Pre-assembled wire harnesses simplify installation and save labor costs for end customers, making them attractive to OEM manufacturers and system integrators.
| Category | Specification | Details |
|---|---|---|

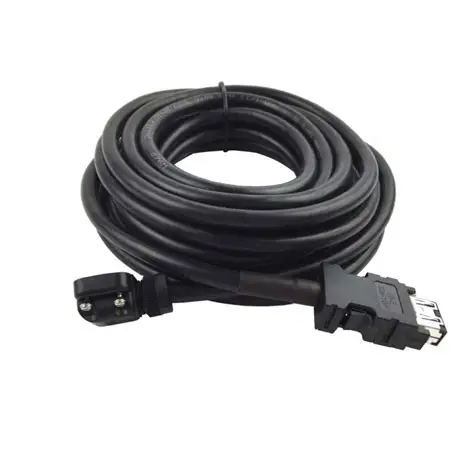

| Product Type | Encoder Feedback Cable | For MR-J3/MR-J4 Servo Systems |
| Model Number | MR-J3ENCBL5M-A1-H | Full Mitsubishi Part Number |
| Cable Length | 5 meters | Fixed Length |
| Connector Type | Motor Side: CN3 (17-pin) | Drive Side: CN2 (20-pin) |
| Wire Gauge | 24 AWG (0.22mm²) | Stranded Copper |
| Shielding | Double-layer (Foil + Braid) | ≥85% Coverage |
| Voltage Rating | 300V AC/DC | Max Operating Voltage |
| Temperature Range | -20°C to +80°C | Flexible at -10°C |
| Bending Radius | 7.5× Cable Diameter | Minimum Recommended |
| Impedance | 100Ω ±15% | Differential Pairs |
| Capacitance | <100pF/m | Conductor-to-Conductor |
| Jacket Material | PVC | Oil-Resistant (UL Style 20276) |
