-Highly Customizable
Wire harnesses can be tailored to specific customer requirements, including connector types, cable lengths, wire gauges, and electrical configurations—ideal for diverse industries and applications.
-Stable and Wide Market Demand
Wire harnesses are essential in automotive, robotics, industrial automation, medical devices, and consumer electronics, ensuring consistent and long-term demand.
-High Value-Added Products
Compared to standard wires or cables, wire harnesses integrate multiple components such as connectors, terminals, and protective sleeves—offering higher margins and added value.
-Preferred by OEMs and Integrators
Pre-assembled wire harnesses simplify installation and save labor costs for end customers, making them attractive to OEM manufacturers and system integrators.
| Category | Parameter | Specification |
|---|---|---|
| General | Product Type | Spring-driven cable reel with automatic retraction |

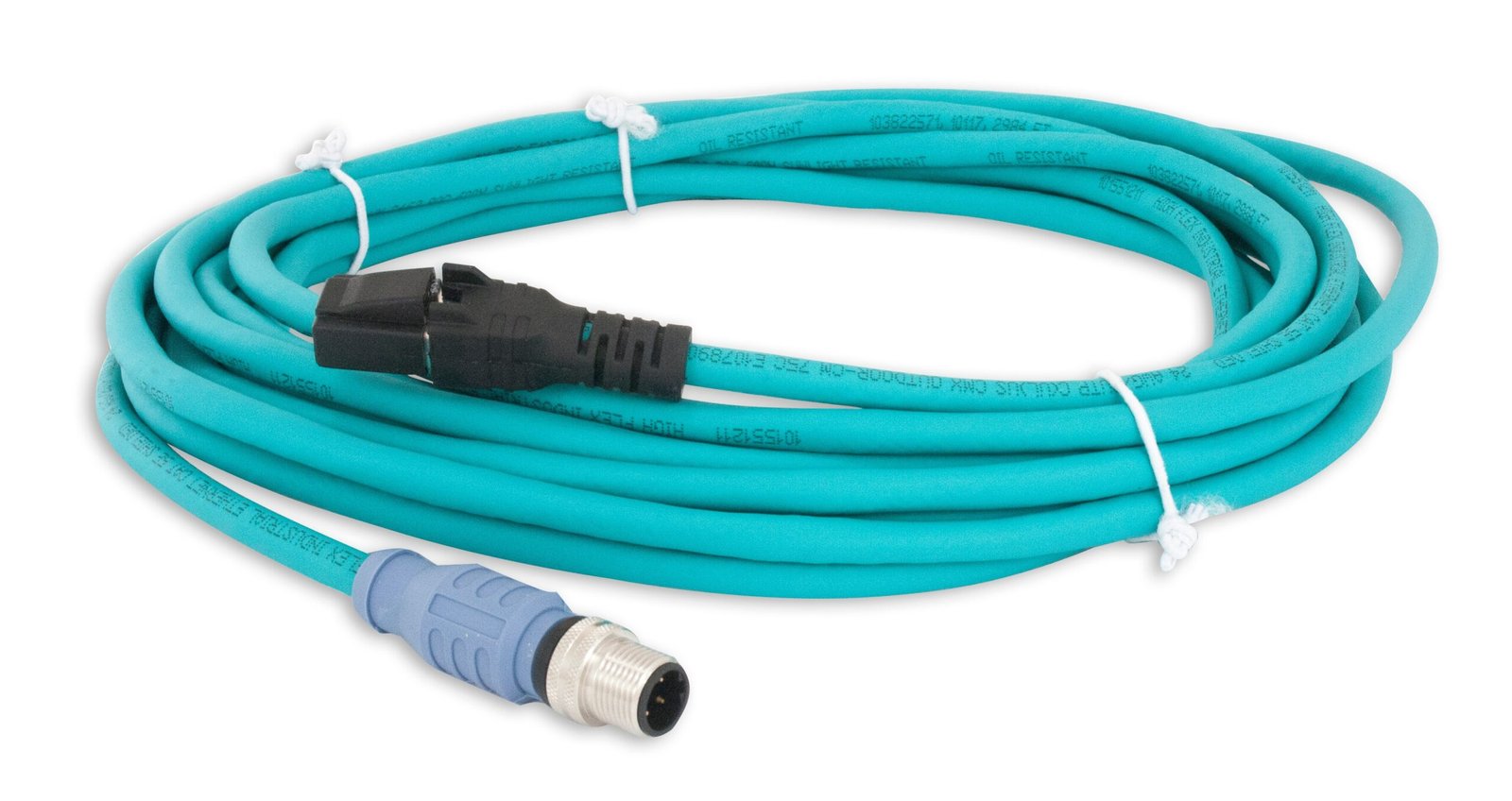

| Model Number | ICNER-5M | |
| Cable Length | 5 meters | |
| Electrical | Voltage Rating | 300V AC/DC |
| Current Rating | 10A max | |
| Conductor Configuration | 4-core (3 phases + ground) | |
| Conductor Size | 0.75mm² (AWG 18) | |
| Mechanical | Reel Material | Flame-retardant ABS plastic |
| Cable Type | Heavy-duty PUR (polyurethane) | |
| Bending Radius | ≥50mm | |
| Rotation | 360° continuous | |
| Environmental | Operating Temperature | -20°C to +70°C |
| IP Rating | IP54 (splash and dust resistant) | |
| Humidity Resistance | 85% RH (non-condensing) | |
| Performance | Retraction Mechanism | Spring-driven with brake system |
| Pull-out Force | ≈15N (adjustable) | |
| Cycle Life | ≥50,000 retractions | |
| Certifications | Safety Standards | CE, UL, cUL |
| Compliance | IEC 60204-1, RoHS | |
| Physical | Dimensions (D×W×H) | 220×150×180mm |
| Weight | 1.3kg | |
| Color | Light gray (RS-10) |
