-Highly Customizable
Wire harnesses can be tailored to specific customer requirements, including connector types, cable lengths, wire gauges, and electrical configurations—ideal for diverse industries and applications.
-Stable and Wide Market Demand
Wire harnesses are essential in automotive, robotics, industrial automation, medical devices, and consumer electronics, ensuring consistent and long-term demand.
-High Value-Added Products
Compared to standard wires or cables, wire harnesses integrate multiple components such as connectors, terminals, and protective sleeves—offering higher margins and added value.
-Preferred by OEMs and Integrators
Pre-assembled wire harnesses simplify installation and save labor costs for end customers, making them attractive to OEM manufacturers and system integrators.
| Category | Parameter | Specification |
|---|---|---|

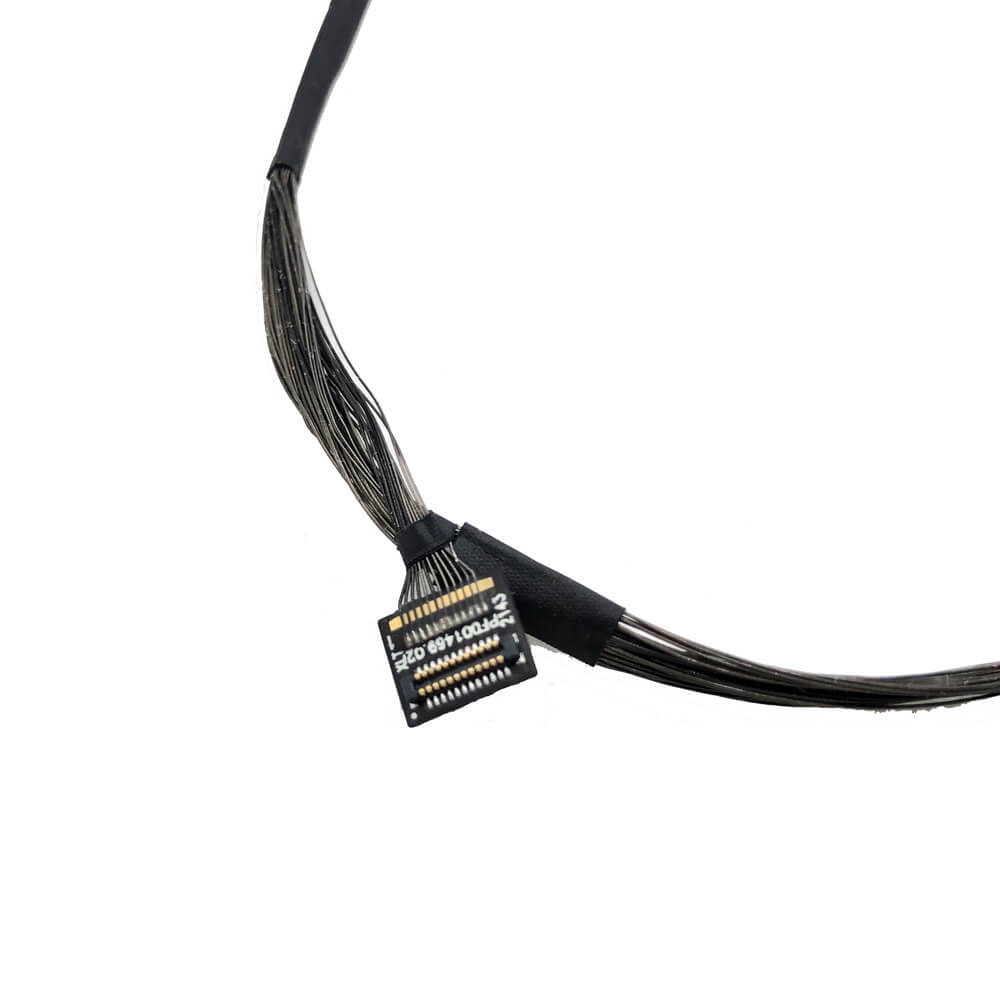

| Compatibility | Supported Models | Mini 3 Pro (All versions) |
| Electrical | Operating Voltage | 3.3V (Logic), 5V (Sensors), 12V (Motors) |
| Current Rating | 1.2A Peak (PTZ Motors), 600mA Continuous (Signals) | |
| Connector | Type | 28-pin Ultra-HD ZIF (0.25mm pitch) |
| Data Transmission | Protocol | 4-Lane MIPI CSI-2 (Supports 4K/60fps HDR) |
| Control Signals | I²C (12.5MHz), Digital PWM (Motor Control) | |
| Mechanical | Cable Length | 48mm (Precision length for gimbal mechanism) |
| Thickness | 0.18mm (14-layer stacked flex PCB) | |
| Bend Radius | 1.8mm (Dynamic), 1.2mm (Static) | |
| Materials | Conductor | Gold-Palladium Alloy (42AWG) |
| Insulation | Liquid Crystal Polymer (LCP) – 300°C solderable | |
| Shielding | Quad-layer EMI Protection (Foil+Braided+Sputtered+Conformal) | |
| Environmental | Operating Temperature | -20°C to +70°C |
| Humidity Resistance | 95% RH Non-condensing (72hr test passed) | |
| Durability | Flex Life | >100,000 cycles (At rated bend radius) |
| Certification | Standards | IPC-6013 Class 3, RoHS 3.0 |
| Included | Package Contents | 1x Signal Cable, ESD-Safe Installation Jig, Torque Screwdriver (0.25N·m) |
