-Highly Customizable
Wire harnesses can be tailored to specific customer requirements, including connector types, cable lengths, wire gauges, and electrical configurations—ideal for diverse industries and applications.
-Stable and Wide Market Demand
Wire harnesses are essential in automotive, robotics, industrial automation, medical devices, and consumer electronics, ensuring consistent and long-term demand.
-High Value-Added Products
Compared to standard wires or cables, wire harnesses integrate multiple components such as connectors, terminals, and protective sleeves—offering higher margins and added value.
-Preferred by OEMs and Integrators
Pre-assembled wire harnesses simplify installation and save labor costs for end customers, making them attractive to OEM manufacturers and system integrators.
Compatibility:

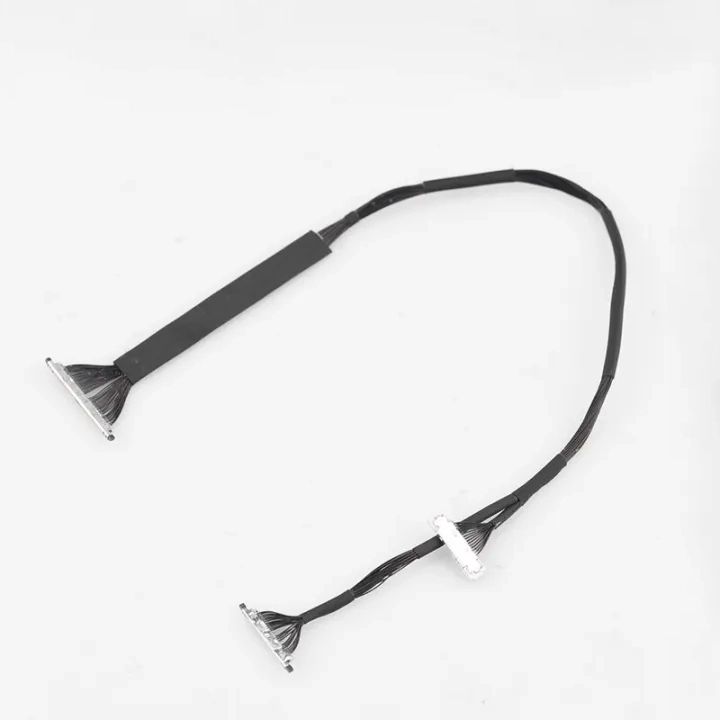

Supported Models: DJI Air 2S (All versions)
| Category | Parameter | Specification |
|---|---|---|
| Electrical | Operating Voltage | 3.3V (Logic) / 5V (Sensors) / 12V (Motors) |
| Current Rating | 1.2A Peak (Motors), 500mA Continuous (Signals) | |
| Connector | Type | 28-pin ZIF (0.3mm pitch, IP6X dust-resistant) |
| Data Transmission | Protocol | 4-Lane MIPI CSI-2 (Supports 4K/60fps @ 200Mbps) |
| Control Signals | I²C (1MHz), PWM (Motor Control), UART (Debug) | |
| Mechanical | Cable Length | 58mm (Precision length for 3-axis gimbal) |
| Thickness | 0.25mm (12-layer flex PCB) | |
| Bend Radius | 2.0mm (Dynamic), 1.5mm (Static) | |
| Materials | Conductor | Gold-Plated OFC (40AWG) |
| Insulation | Polyimide (300°C solderable) | |
| Shielding | Triple-Layer (Foil + Braid + Conformal Coating) | |
| Environmental | Operating Temperature | -20°C to +70°C |
| Humidity Resistance | 90% RH Non-condensing | |
| Durability | Flex Life | >50,000 cycles (MIL-STD-883 compliant) |
| Certification | Standards | IPC-6013 Class 2, RoHS 2.0 |
