-Highly Customizable
Wire harnesses can be tailored to specific customer requirements, including connector types, cable lengths, wire gauges, and electrical configurations—ideal for diverse industries and applications.
-Stable and Wide Market Demand
Wire harnesses are essential in automotive, robotics, industrial automation, medical devices, and consumer electronics, ensuring consistent and long-term demand.
-High Value-Added Products
Compared to standard wires or cables, wire harnesses integrate multiple components such as connectors, terminals, and protective sleeves—offering higher margins and added value.
-Preferred by OEMs and Integrators
Pre-assembled wire harnesses simplify installation and save labor costs for end customers, making them attractive to OEM manufacturers and system integrators.

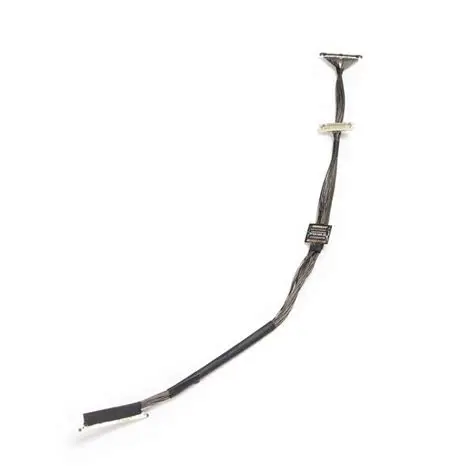

| Category | Parameter | Specification |
|---|---|---|
| Compatibility | Supported Models | Mini 3 Pro (All versions) |
| Electrical | Operating Voltage | 3.3V/5V DC (Dual voltage support) |
| Current Rating | 800mA Max (PTZ motor drive) | |
| Connector Type | 28-pin Micro Coaxial (0.4mm pitch) | |
| Signal | Data Transmission | 4-Lane MIPI CSI-2 + 2-Lane SERDES |
| Video Resolution | Supports 4K/60fps HDR Transmission | |
| Mechanical | Cable Length | 58mm (Precision length for gimbal mechanism) |
| Thickness | 0.28mm (12-layer flex PCB construction) | |
| Bend Radius | 2.5mm (Dynamic) / 1.5mm (Static) | |
| Materials | Conductor | Gold-plated OFC (36AWG micro-coaxial) |
| Insulation | Liquid Crystal Polymer (LCP) | |
| Shielding | Triple-shielded (Individual+Group+Overall) | |
| Environmental | Operating Temperature | -30°C to +80°C |
| Vibration Resistance | 20G (MIL-STD-202H) | |
| Durability | Flex Life | >100,000 cycles (Under rated bend radius) |
| Features | Protection | Over-current/ESD/Short-circuit protection |
| Certification | Standards | IPC-6013 Class 3, RoHS 2.0 |
| Pinout | Video Lanes (16x) | 4× MIPI D-PHY (4.5Gbps/lane) |
| Control Lines (8x) | I²C, SPI, UART, GPIOs | |
| Power (4x) | 3.3V, 5V, Motor Power (2x) | |
| Included | Package Contents | 1x PTZ Signal Cable, Installation Jig |
