-Highly Customizable
Wire harnesses can be tailored to specific customer requirements, including connector types, cable lengths, wire gauges, and electrical configurations—ideal for diverse industries and applications.
-Stable and Wide Market Demand
Wire harnesses are essential in automotive, robotics, industrial automation, medical devices, and consumer electronics, ensuring consistent and long-term demand.
-High Value-Added Products
Compared to standard wires or cables, wire harnesses integrate multiple components such as connectors, terminals, and protective sleeves—offering higher margins and added value.
-Preferred by OEMs and Integrators
Pre-assembled wire harnesses simplify installation and save labor costs for end customers, making them attractive to OEM manufacturers and system integrators.

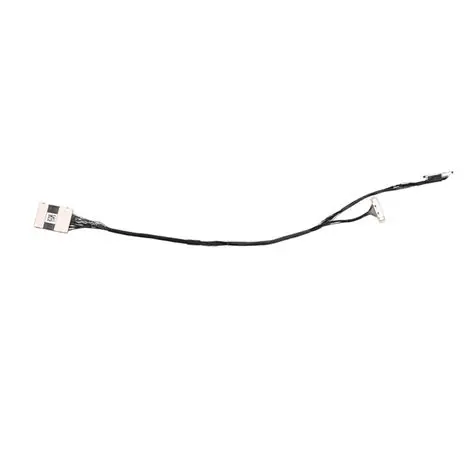

| Category | Parameter | Specification |
|---|---|---|
| Compatibility | Supported Models | Mini 2 / Mini SE / Mini 4K |
| Electrical | Operating Voltage | 3.3V DC (Signal) / 5V DC (Power) |
| Current Rating | 500mA Max | |
| Connector Type | 24-pin ZIF Connector (0.5mm pitch) | |
| Signal | Data Transmission | MIPI CSI-2 (4 Lane) + I²C Control |
| Video Resolution | Supports 4K/30fps Transmission | |
| Mechanical | Cable Length | 65mm (Precision length for gimbal assembly) |
| Thickness | 0.25mm (Including insulation) | |
| Bend Radius | 3mm (Minimum) | |
| Materials | Conductor | 7N Oxygen-Free Copper (42AWG) |
| Insulation | Polyimide (Up to 200°C) | |
| Shielding | Dual-layer EMI Protection | |
| Environmental | Operating Temperature | -20°C to +70°C |
| Humidity Resistance | 95% RH Non-condensing | |
| Durability | Flex Life | >50,000 cycles (At minimum bend radius) |
| Features | Protection | ESD Protection (±8kV Contact) |
| Certification | Standards | RoHS, REACH |
| Pinout | Video Lanes (8x) | MIPI D0+/D0- to D3+/D3- |
| Control Lines (6x) | I²C, GPIO, UART | |
| Power (4x) | 3.3V, 5V, GND (2x) | |
| Included | Package Contents | 1x Signal Cable, Installation Guide |
