-Highly Customizable
Wire harnesses can be tailored to specific customer requirements, including connector types, cable lengths, wire gauges, and electrical configurations—ideal for diverse industries and applications.
-Stable and Wide Market Demand
Wire harnesses are essential in automotive, robotics, industrial automation, medical devices, and consumer electronics, ensuring consistent and long-term demand.
-High Value-Added Products
Compared to standard wires or cables, wire harnesses integrate multiple components such as connectors, terminals, and protective sleeves—offering higher margins and added value.
-Preferred by OEMs and Integrators
Pre-assembled wire harnesses simplify installation and save labor costs for end customers, making them attractive to OEM manufacturers and system integrators.

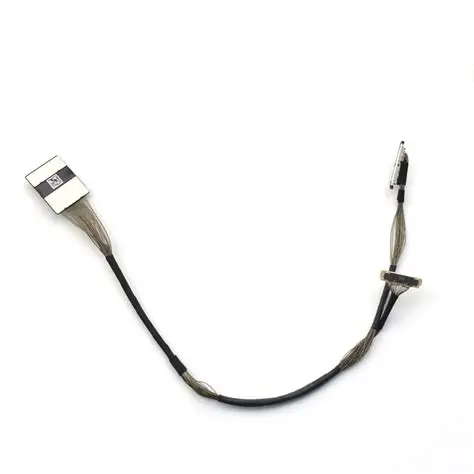

| Category | Parameter | Specification |
|---|---|---|
| Compatibility | Supported Models | Mavic Mini (All generations) |
| Electrical | Operating Voltage | 3.3V DC (Logic) / 5V DC (Motor Drive) |
| Current Rating | 600mA Max (Peak Motor Current) | |
| Connector Type | 20-pin Micro ZIF (0.3mm pitch) | |
| Signal | Data Transmission | 2-Lane MIPI CSI-2 + PWM Motor Control |
| Video Resolution | Supports 2.7K/30fps Transmission | |
| Mechanical | Cable Length | 48mm (Precision length for gimbal mechanism) |
| Thickness | 0.2mm (8-layer flex construction) | |
| Bend Radius | 2mm (Dynamic) / 1.5mm (Static) | |
| Materials | Conductor | Gold-plated Copper (42AWG) |
| Insulation | Liquid Crystal Polymer (LCP) | |
| Shielding | Dual-layer EMI Protection (Foil + Sputtered Coating) | |
| Environmental | Operating Temperature | -10°C to +60°C |
| Humidity Resistance | 85% RH Non-condensing | |
| Durability | Flex Life | >30,000 cycles (At rated bend radius) |
| Features | Protection | ESD Protection (±6kV Contact) |
| Certification | Standards | IPC-6013 Class 2, RoHS 2.0 |
| Pinout | Video Lanes (8x) | MIPI D0+/D0- to D1+/D1- |
| Control Lines (6x) | PWM (2x), I²C (2x), GPIO (2x) | |
| Power (6x) | 3.3V (2x), 5V (2x), GND (2x) | |
| Included | Package Contents | 1x Signal Cable, Installation Tweezers |
