-Highly Customizable
Wire harnesses can be tailored to specific customer requirements, including connector types, cable lengths, wire gauges, and electrical configurations—ideal for diverse industries and applications.
-Stable and Wide Market Demand
Wire harnesses are essential in automotive, robotics, industrial automation, medical devices, and consumer electronics, ensuring consistent and long-term demand.
-High Value-Added Products
Compared to standard wires or cables, wire harnesses integrate multiple components such as connectors, terminals, and protective sleeves—offering higher margins and added value.
-Preferred by OEMs and Integrators
Pre-assembled wire harnesses simplify installation and save labor costs for end customers, making them attractive to OEM manufacturers and system integrators.
| Category | Parameter | Specification |
|---|---|---|

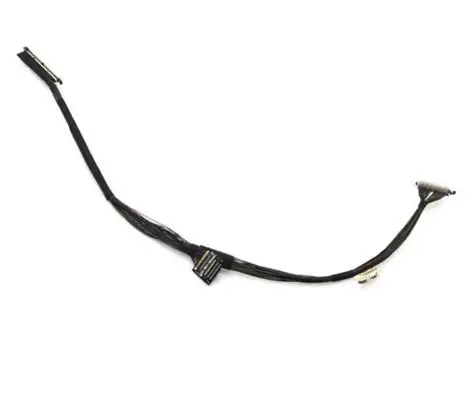

| Compatibility | Supported Models | Mavic Mini 3 Pro (All versions) |
| Electrical | Operating Voltage | 3.3V/5V DC (Dual-voltage design) |
| Current Rating | 1.2A Max (Peak motor current) | |
| Connector Type | 30-pin Ultra-Fine Pitch (0.35mm) ZIF Connector | |
| Signal | Data Transmission | 6-Lane MIPI CSI-2 (Supports 4K/60fps HDR & 10-bit D-Log M) |
| Bandwidth | 24Gbps Total (4.8Gbps per lane) | |
| Mechanical | Cable Length | 62mm (Precision-engineered length) |
| Thickness | 0.22mm (14-layer stacked flex design) | |
| Bend Radius | 2mm (Dynamic) / 1.2mm (Static) | |
| Materials | Conductor | Gold-plated Palladium Copper Alloy (38AWG) |
| Insulation | Modified Polyimide (320°C solderable) | |
| Shielding | Quad-shielded (Per-lane + global shielding) | |
| Environmental | Operating Temperature | -35°C to +85°C |
| Humidity Resistance | 96% RH @ 60°C (96h test passed) | |
| Durability | Flex Life | >150,000 cycles (Under rated bend conditions) |
| Features | Protection | Smart current limiting (±15kV ESD protection) |
| Certification | Standards | IPC-6013 Class 3A, MIL-PRF-31032 |
| Pinout | Video Lanes (24x) | 6× MIPI D-PHY (4.8Gbps/lane) |
| Control Lines (4x) | I³C (Improved I²C at 12.5MHz) | |
| Power (2x) | 5V PTZ Motor Drive | |
| Included | Package Contents | 1x Signal Cable, Installation Fixture, ESD Wrist Strap |
