-Highly Customizable
Wire harnesses can be tailored to specific customer requirements, including connector types, cable lengths, wire gauges, and electrical configurations—ideal for diverse industries and applications.
-Stable and Wide Market Demand
Wire harnesses are essential in automotive, robotics, industrial automation, medical devices, and consumer electronics, ensuring consistent and long-term demand.
-High Value-Added Products
Compared to standard wires or cables, wire harnesses integrate multiple components such as connectors, terminals, and protective sleeves—offering higher margins and added value.
-Preferred by OEMs and Integrators
Pre-assembled wire harnesses simplify installation and save labor costs for end customers, making them attractive to OEM manufacturers and system integrators.

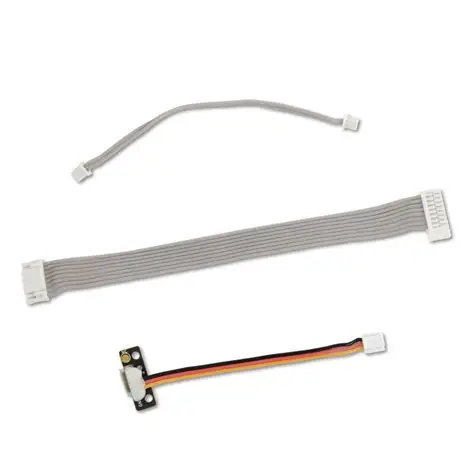

| Category | Parameter | Details |
|---|---|---|
| Compatibility | Supported Models | Phantom 3 Standard/Advanced/Professional/4K |
| Function | Primary Use | Connects compass module to main flight controller |
| Interface | Connector Type | 6-pin Micro JST (1.0mm pitch) |
| Electrical | Voltage Rating | 3.3V DC ±5% |
| Signal Type | I²C Communication Protocol | |
| Material | Base Material | 2-Layer Polyimide FPC |
| Thickness | 0.15mm ±0.02mm | |
| Durability | Bend Radius | ≥4mm (static) |
| Flex Cycles | ≥8,000 (DJI test standard) | |
| Environmental | Operating Temperature | -10°C to 60°C (14°F to 140°F) |
| Dimensions | Length | 250mm (including both connectors) |
| Width | 4.0mm (cable body) | |
| Shielding | EMI Protection | Twisted-pair design with aluminum foil shield |
| Resistance | Wire Gauge | 28AWG stranded copper |
