-Highly Customizable
Wire harnesses can be tailored to specific customer requirements, including connector types, cable lengths, wire gauges, and electrical configurations—ideal for diverse industries and applications.
-Stable and Wide Market Demand
Wire harnesses are essential in automotive, robotics, industrial automation, medical devices, and consumer electronics, ensuring consistent and long-term demand.
-High Value-Added Products
Compared to standard wires or cables, wire harnesses integrate multiple components such as connectors, terminals, and protective sleeves—offering higher margins and added value.
-Preferred by OEMs and Integrators
Pre-assembled wire harnesses simplify installation and save labor costs for end customers, making them attractive to OEM manufacturers and system integrators.

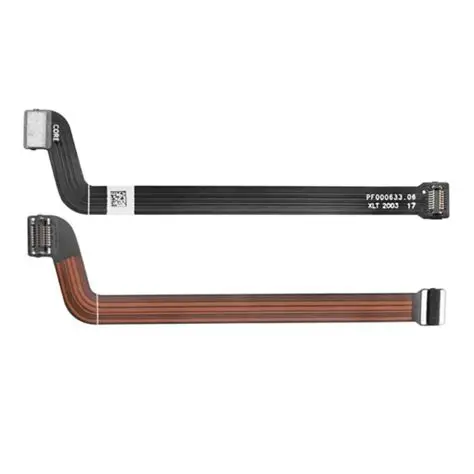

| Category | Parameter | Specification |
|---|---|---|
| Compatibility | Supported Models | Mavic Air 2 (All versions) |
| Electrical | Operating Voltage | 3.3V (Logic), 5V (Sensors), 12V (Motors) |
| Current Rating | 1.5A Peak (Motors), 500mA Continuous (Signals) | |
| Connector | Type | 24-pin ZIF (0.3mm pitch) |
| Data Transmission | Protocol | 3-Lane MIPI CSI-2 (Supports 4K/60fps @ 100Mbps) |
| Control Signals | I²C (1MHz), PWM, UART | |
| Mechanical | Cable Length | 55mm (Precision length for gimbal assembly) |
| Thickness | 0.25mm (10-layer flex construction) | |
| Bend Radius | 2.0mm (Dynamic), 1.5mm (Static) | |
| Materials | Conductor | Gold-Plated OFC (42AWG) |
| Insulation | Polyimide (250°C rated) | |
| Shielding | Dual-Layer (Foil + Sputtered Coating) | |
| Environmental | Operating Temperature | -20°C to +60°C |
| Humidity Resistance | 85% RH Non-condensing | |
| Durability | Flex Life | >50,000 cycles |
| Certification | Standards | IPC-6013 Class 2, RoHS 2.0 |
