-Highly Customizable
Wire harnesses can be tailored to specific customer requirements, including connector types, cable lengths, wire gauges, and electrical configurations—ideal for diverse industries and applications.
-Stable and Wide Market Demand
Wire harnesses are essential in automotive, robotics, industrial automation, medical devices, and consumer electronics, ensuring consistent and long-term demand.
-High Value-Added Products
Compared to standard wires or cables, wire harnesses integrate multiple components such as connectors, terminals, and protective sleeves—offering higher margins and added value.
-Preferred by OEMs and Integrators
Pre-assembled wire harnesses simplify installation and save labor costs for end customers, making them attractive to OEM manufacturers and system integrators.
| Category | Parameter | Specification |
|---|---|---|

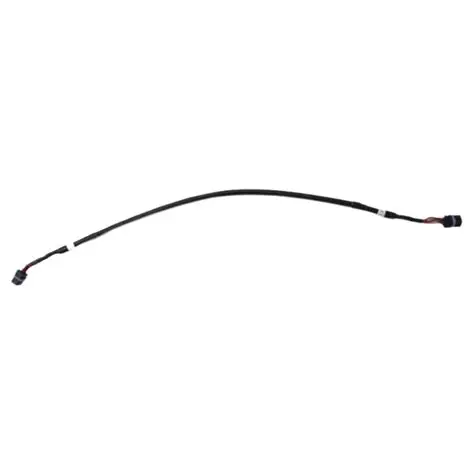

| Compatibility | Supported Models | Agras T40 (All configurations) |
| Electrical | Operating Voltage | 5V DC (Signal) / 12V DC (Power) |
| Current Rating | 3A Max (Power) / 1A (Signal) | |
| Connector Type | 9-pin Aviation Connector (IP67 rated) | |
| Signal | Protocol | CAN FD + RS485 (Dual-channel redundancy) |
| Baud Rate | 2Mbps (CAN FD) / 115.2kbps (RS485) | |
| Mechanical | Cable Length | 1.5m (Standard) |
| Outer Diameter | 7.2mm (Shielded) | |
| Bend Radius | ≥60mm (Dynamic) / ≥40mm (Static) | |
| Materials | Conductor | Silver-plated Copper (19/0.08mm strands) |
| Insulation | Fluorinated Ethylene Propylene (FEP) | |
| Shielding | Dual-layer Al Foil + Tinned Copper Braid (≥98% coverage) | |
| Environmental | Operating Temperature | -40°C to +105°C |
| IP Rating | IP68 (When connected) | |
| Durability | Vibration Resistance | 10-2000Hz, 15G (MIL-STD-810H compliant) |
| Tensile Strength | ≥100N | |
| Certification | Standards | MIL-DTL-38999 (Connectors), UL 94V-0 (Insulation) |
| Pinout | Pins 1-2 | CAN FD_H/L (Twisted pair) |
| Pins 3-4 | RS485_A/B (Shielded) | |
| Pins 5-7 | 12V Power/GND (16AWG) | |
| Pins 8-9 | Diagnostic Signals | |
| Included | Package Contents | 1x Signal Cable, 2x Dust Caps, Installation Guide |
