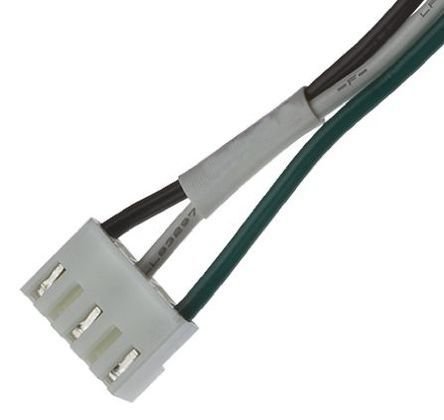

-Highly Customizable
Wire harnesses can be tailored to specific customer requirements, including connector types, cable lengths, wire gauges, and electrical configurations—ideal for diverse industries and applications.
-Stable and Wide Market Demand
Wire harnesses are essential in automotive, robotics, industrial automation, medical devices, and consumer electronics, ensuring consistent and long-term demand.
-High Value-Added Products
Compared to standard wires or cables, wire harnesses integrate multiple components such as connectors, terminals, and protective sleeves—offering higher margins and added value.
-Preferred by OEMs and Integrators
Pre-assembled wire harnesses simplify installation and save labor costs for end customers, making them attractive to OEM manufacturers and system integrators.
| Category | Parameter | Specification |
|---|---|---|
| General | Model Number | H-IN-12 |
| Series | H-IN Industrial Series | |
| Type | DIN Rail Power Supply | |
| Input | Voltage Range | 85-264V AC (Universal Input) |
| Frequency | 47-63Hz | |
| Input Current | 3.0A max @ 115V AC | |
| Power Factor | ≥0.95 | |
| Output | Voltage | 24V DC (±1%) |
| Current | 12A (Continuous) | |
| Power | 288W | |
| Ripple & Noise | ≤120mVp-p | |
| Performance | Efficiency | 92% (Typical @ 230V AC) |
| Regulation | ±0.5% (Line), ±1% (Load) | |
| Hold-up Time | ≥25ms @ Full Load | |
| Protection | Overcurrent | 105-150% (Auto-recovery) |
| Overvoltage | 28-32V (Latching) | |
| Overtemperature | Thermal Shutdown (Auto-recovery) | |
| Mechanical | Dimensions | 32 × 124 × 115mm (W×H×D) |
| Weight | 1.1kg | |
| Mounting | DIN Rail TS35/7.5/15 | |
| Environmental | Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C | |
| Cooling | Convection (Fanless) | |
| Humidity | 20-90% RH (Non-condensing) | |
| Certifications | Safety | UL 62368-1, EN 62368-1 |
| EMC | EN 61204-3, EN 61000-6-2/-4 | |
| Approvals | CE, UKCA, cULus |
