In electric vehicle (EV) architectures, high-voltage (HV) traction systems coexist with low-voltage (LV) high-speed data networks, such as Automotive Ethernet. This configuration creates a complex electromagnetic environment in which impedance mismatches at connector interfaces can lead to signal degradation, electromagnetic interference (EMI) noncompliance, and power loss.
This FAQ outlines the technical methods used to identify and mitigate mismatches across the physical, mechanical, and circuit-level domains.
Why is the 50-ohm impedance baseline unsuitable for EV high-voltage networks?
In traditional radio frequency (RF) and LV automotive applications, 50 ohms is the standard characteristic impedance. However, shielded HV power cables exhibit different physical properties due to their large conductor cross-sections (up to 50 mm²) and the thin insulation required for thermal management.
Table 1 shows that the characteristic wave impedance for HV cables typically falls between 6.2 ohms and 19.5 ohms. This gap is due to HV cables exhibiting 10–20 times lower line inductivity and 3–10 times higher ground capacity than standard LV cables.
Connecting these low-impedance cables to standard 50-ohm Line Impedance Stabilization Networks (LISNs) during electromagnetic compatibility (EMC) testing results in high reflection coefficients. This causes standing waves and resonances at frequencies higher than 10 MHz. To handle this, engineers need to understand the exact cable impedance and use special HV-LISNs or adjust their calculations during testing.
How does mechanical connector design affect shield termination and transfer impedance?
The connector interface is a common point for EMI leakage in mixed-voltage architectures. This performance is quantified through transfer impedance. Maintaining shielding effectiveness at high frequencies, particularly in the FM radio band, requires a mechanical termination that minimizes parasitic series inductance.
The standard handling technique is 360-degree braid termination. Unlike pigtail terminations, which introduce localized inductance, the braid is flared and clamped continuously to the connector shell.

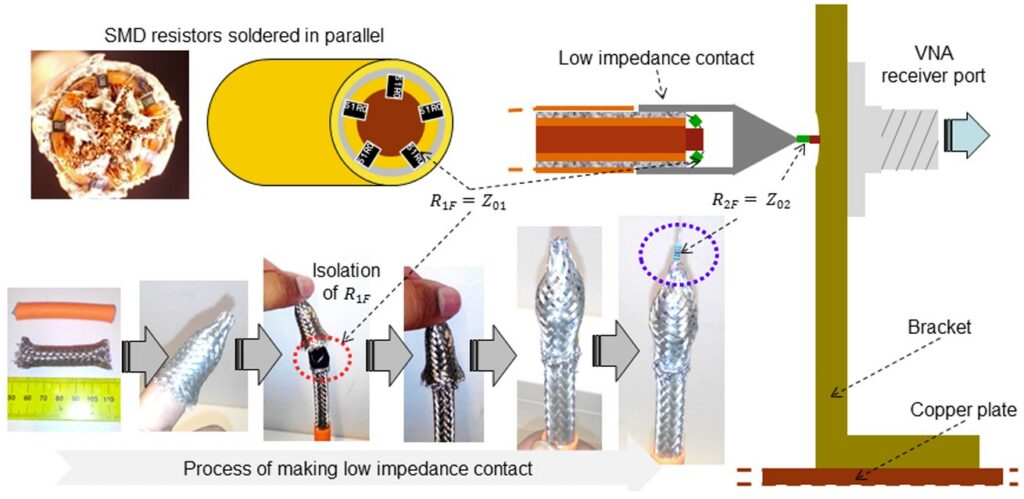

As demonstrated in the Ground Plate Method (GPM) setup in Figure 1, using SMD resistors in a star configuration for matching loads (R1F) reduces parasitic effects. This geometric control ensures the shield-to-connector interface does not radiate switching noise from power electronics.
PCB layout requirements for symmetrical impedance in Automotive Ethernet
For data interfaces such as 100/1000BASE-T1, impedance management focuses on maintaining high-speed signal symmetry. Mismatches at the Medium Dependent Interface (MDI) can convert differential signals into common-mode noise.

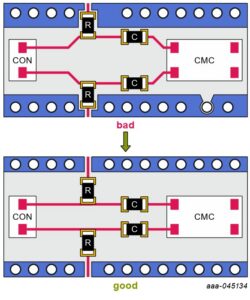

To manage these mismatches on the PCB, designers must maintain symmetry between the Connector (CON) and the Common Mode Choke (CMC). Figure 2 shows how such a symmetry can be achieved.
Based on established layout principles, the following requirements apply:
- Symmetrical routing: Differential traces must be routed as edge-coupled microstrips with matched lengths.
- Component placement: Passive components in the termination network should mirror each other precisely.
- Layer strategy: MDI traces should be routed on a single layer to avoid impedance discontinuities caused by vias.
- The 5-W rule: A distance of at least five times the trace width should be maintained between the MDI pair and other signal traces to reduce crosstalk.
How is impedance mismatch addressed in Vehicular Power Line Communication (VPLC)?
VPLC uses the power harness as a communication medium, where impedance is not constant. Access impedance fluctuates based on vehicle states, such as ignition or auxiliary load changes. Passive components cannot effectively compensate for these dynamic shifts.

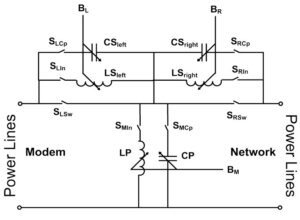

The technical solution is adaptive impedance matching (AIM), which detects load changes in real-time and reconfigures the matching network electronically. Figure 3 details the system architecture, which involves switchable banks and control logic.
An AIM system includes:
- Sensing unit: Measures real-time access impedance using Op-Amps to detect voltage and current envelopes.
- Control logic: Categorizes the measured impedance into specific regions of a Smith Chart.
- Matching unit: Uses a reconfigurable L-network with switchable capacitor and inductor banks to achieve a conjugate match.
This active method can improve VPLC signal power transfer to within 30% of the theoretical optimum.
Summary
Managing impedance mismatches in mixed-voltage architectures requires specialized techniques for each domain. HV systems require mechanical shield termination to account for low characteristic impedances, while high-speed data networks depend on PCB geometric precision. In VPLC environments, active matching circuits provide the dynamic compensation necessary for functional reliability. Engineers should first identify the use cases and apply the techniques accordingly.
References
Transfer impedance simulation and measurement methods to analyse shielding behaviour of HV cables used in Electric-Vehicles and Hybrid-Electric-Vehicles, Advances in Radio Sciences
An Adaptive Impedance Matching System for Vehicular Power Line Communication, The University of British Columbia
Impedance Analysis of Automotive High Voltage Networks for EMC Measurements, University of Stuttgart
AN13335 – PCB design guidelines for automotive Ethernet, NXP Semiconductors
